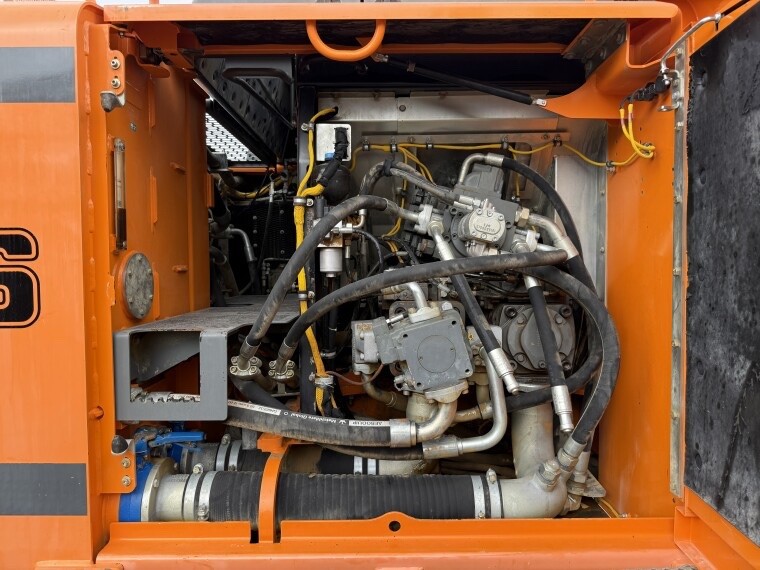

A high-pressure hydraulic hose can be summed up in one sentence: one oil-resistant inner tube, one to six steel wire reinforcement plies, and one abrasion-resistant outer cover. Yet with this identical three-part structure, some hoses run reliably for three years under 31.5 MPa, while others bulge at the very first pressure peak. The difference lies not merely in the materials adopted, but in the thickness, helix angle, number of plies of every layer, and how they cooperate with one another.
Inner Tube: Seal First, Then Burst Resistance
The inner tube, normally made of nitrile rubber, is the first layer exposed to hydraulic oil, with thickness ranging from 1.5 mm to 3 mm subject to nominal bore. Its primary job is not to bear pressure, but to maintain compactness — to fully contain hydraulic fluid and stop it from seeping into the steel wire reinforcement.
Its real enemies are temperature and aging. Under high heat and pressure, hydraulic fluid leaches plasticizers out of rubber, causing the inner tube to harden, crack, and lose adhesion to the steel wires. Once delamination occurs, oil creeps along the bonding interface. Externally the hose may look intact, yet internal erosion is already underway.
Tube thickness is a balancing act. Too thin, and the rubber is squeezed out during crimping, forming bulges at the fitting root. Too thick, and the hose becomes stiff, bringing greater volumetric expansion under pressure fluctuation. Therefore, inner tube thickness is never “thicker equals safer”; it must fall within a narrow band tailored to bore size and pressure rating.
Reinforcement Plies: The Magic Angle of 54°44′
Steel wire plies determine the maximum working pressure. Two construction routes are available: two-wire braided designs (2SN, SAE 100R2) for medium and low pressure, while four-ply or six-ply spiral designs (4SP, 4SH) serve high-pressure duties.
There is a well-known principle for braid helix angle: 54°44′, known in the industry as the neutral angle. At this angle, the hose barely elongates or shortens when pressurized. A smaller angle leads to hose elongation under pressure; a larger one causes contraction. Elongation or contraction itself is not fatal, but repeated cycling creates friction where steel wires cross, which is the dominant factor limiting impulse fatigue life.
Pressure does not rise linearly with extra wire plies. Adding plies boosts pressure capacity at the cost of larger minimum bend radius, increased interply friction, and higher stress concentration at the fitting root during assembly. Therefore, proper selection depends not on the maximum burst rating alone, but the stable working pressure achievable at the given bore and bend radius.
Bore and pressure rating are inherently contradictory. For the same 4SP construction, DN6 handles up to 450 bar, whereas DN25 only reaches roughly 250 bar. For a given wall thickness, larger bore generates higher hoop stress, a fundamental geometric constraint that cannot be bypassed.
Impulse Test: The True Benchmark
Burst pressure is the most straightforward indicator: four times the working pressure, the safety factor defined by ISO 1436 and SAE J517. But a burst test is a single one-off failure test, while impulse testing subjects the hose to hundreds of thousands of cycles.
Per ISO 6803, the test rig cycles pressure from zero to 133% of working pressure and back to zero, with fluid temperature held at 100 ℃. SAE 100R2 grade requires a minimum of 400,000 cycles to pass. Failures usually initiate out of sight: steel wires rub against each other at crossover points with each pressurization and depressurization cycle. Individual wires fatigue and snap, forming stress raisers. Cracks propagate layer by layer, after which inner tube rubber extrudes through the fracture, forming bulges before final rupture.
Impulse life is not a test of raw tensile strength; it tests how to minimize inter-wire friction. Stable braid angle, uniform pre-tension on steel wires, and intermediate rubber layers between plies usually contribute more to performance than simply adding extra wire plies.
Outer Cover: Determines the Service Life in the Field
The outer cover bears no pressure load, yet it dictates how long the hose survives outdoors. Typically made of neoprene or chlorosulfonated polyethylene, it resists three major hazards: abrasion, ozone and UV radiation.
The most common field failure for construction machinery is not burst failure, but wear-through at clamp locations. As the boom cycles, the outer cover abrades away, exposing steel wires that corrode and fracture afterwards. Such failures come with almost no advance warning and can only be caught by routine inspection. Hence outer cover abrasion resistance and clamp spacing are specified together in OEM assembly specifications.
A high-pressure hose’s pressure rating is marked by its burst pressure, yet its true quality is proven by remaining intact after 400,000 impulse cycles.
